WALL & COLUMN FORM K120

Payment :
T/T 30% deposit payment before manufacture, and 70% balanced payment against B/L Copy.
original region :
China
port of dispatch :
Containers
min order :
Containers

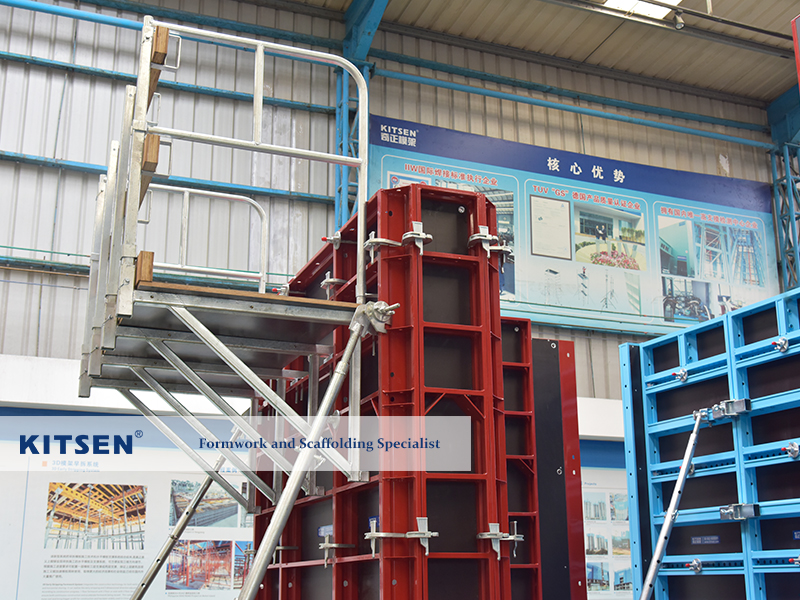

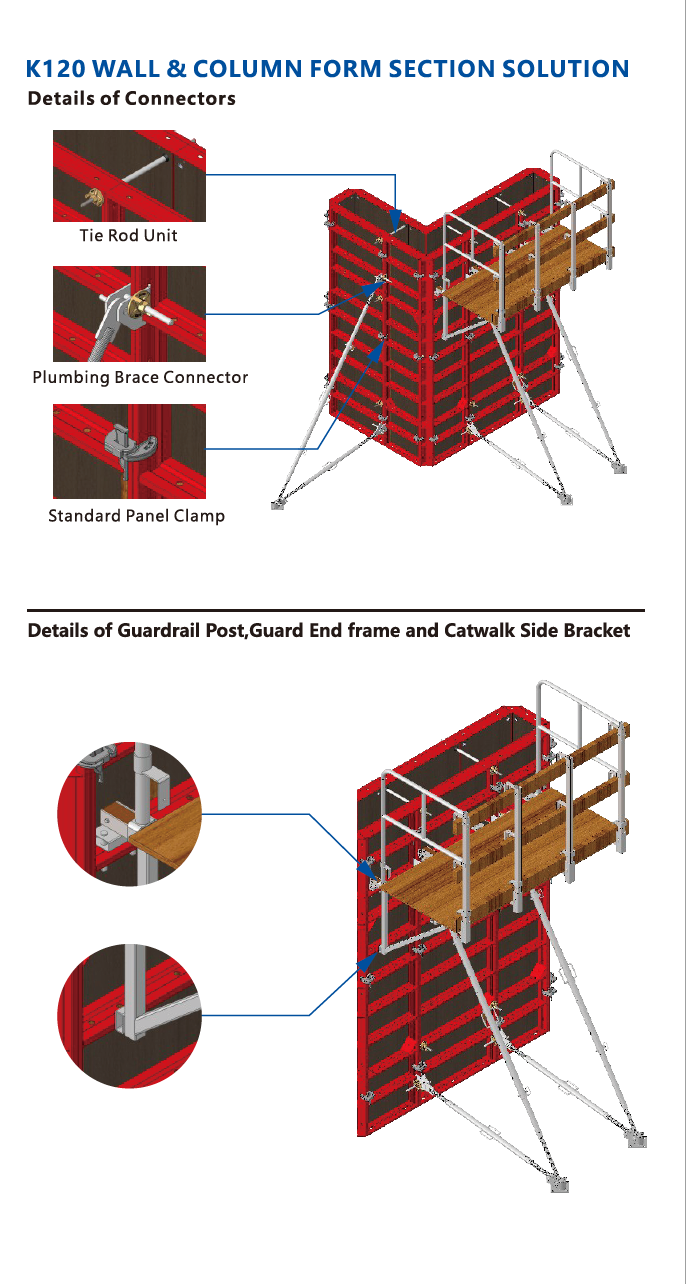

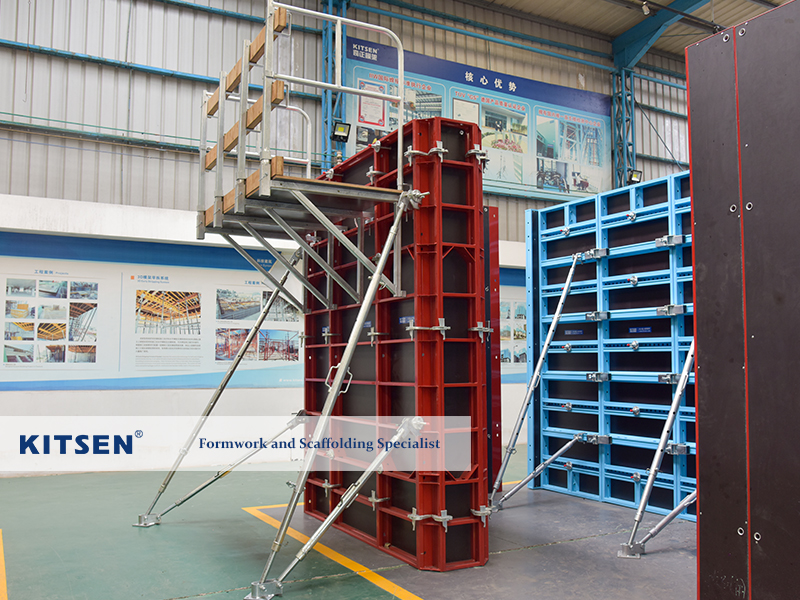

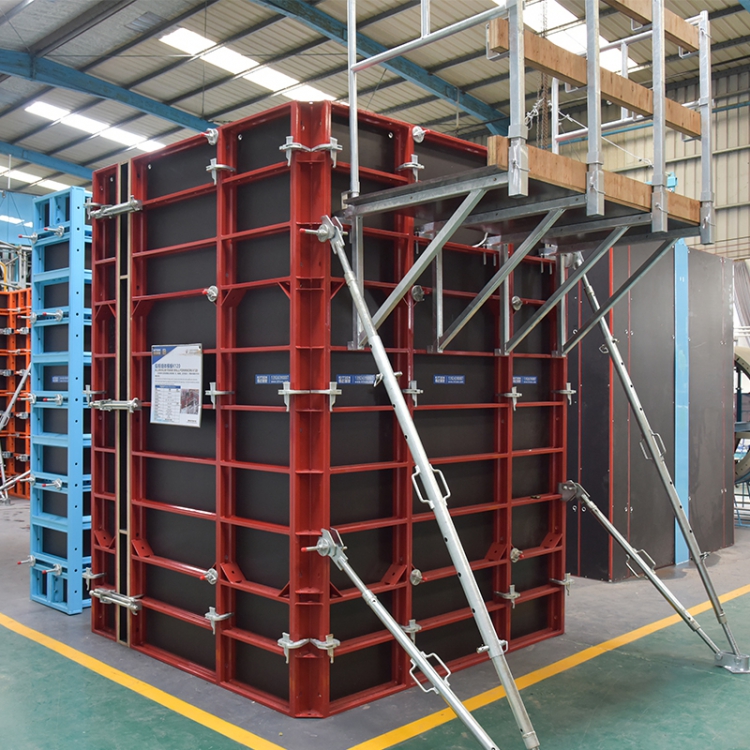

K120 Wall & Column Form is designed to minimize the number ofcomponents and improve site and yard efficiency by an excellent R&Dteam with 30-year experience and expertise, manufactured under strictquality control standard.

inquiry now

description

FEATURES & ADVANTAGES

Simple & Light weight

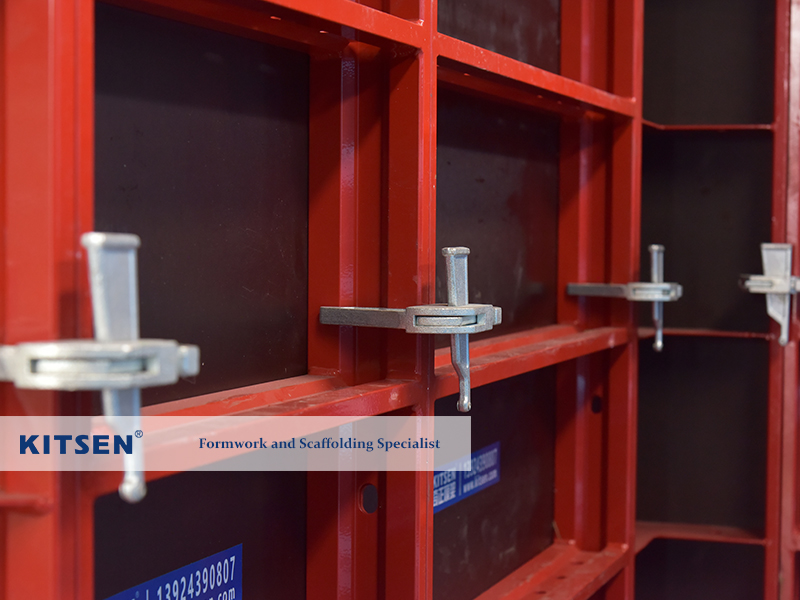

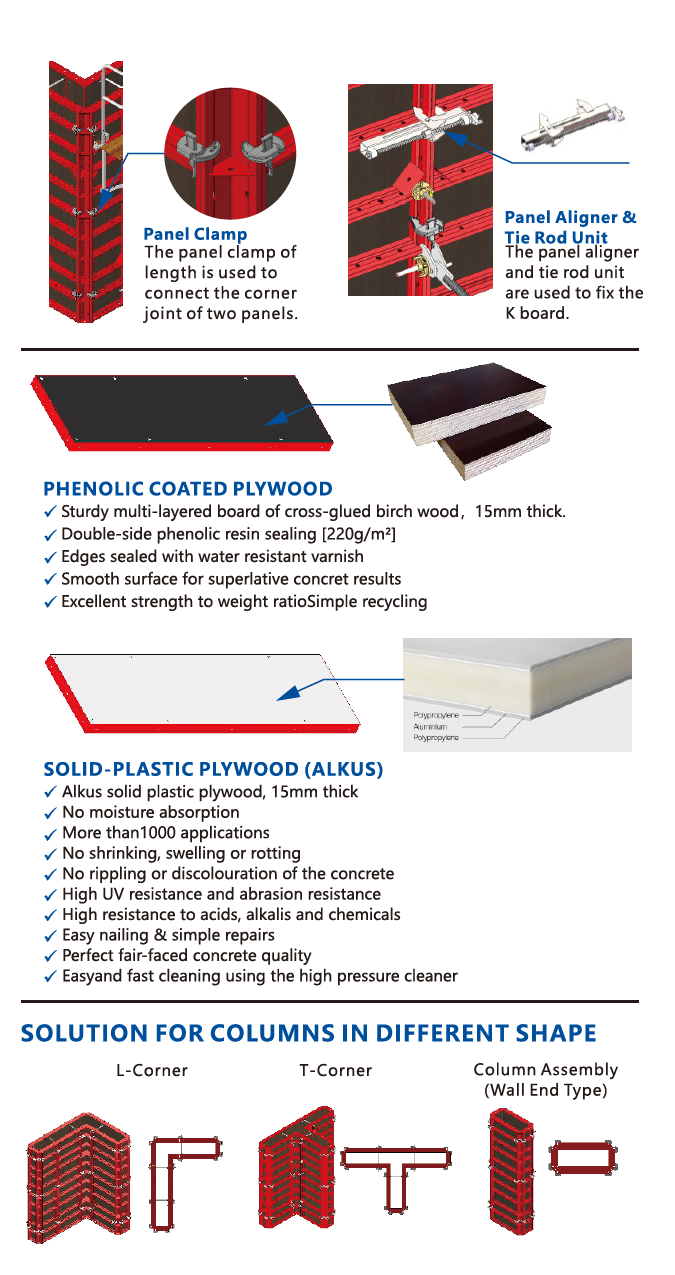

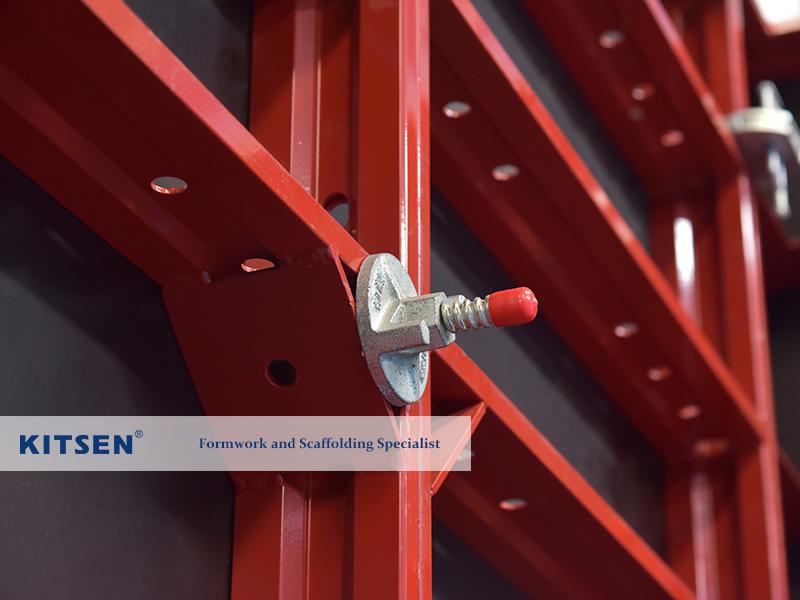

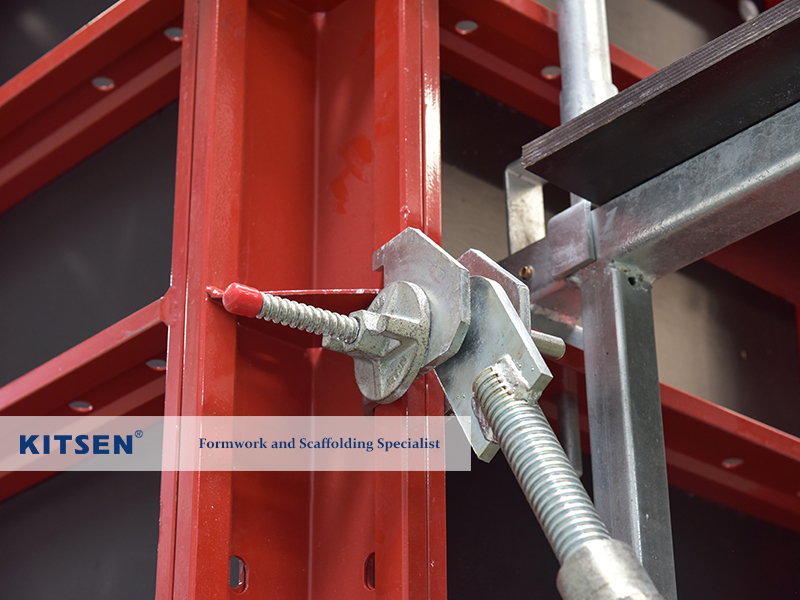

Large modular design with basic components as panels, clamps and tie rods.

The panel frame is made of aluminum alloy 6061-T6 and 15mm thickness birch plywood as panel surface.

The standard panel size 2400X600mm only weighs 45kgs, which can be easily carried by workers, no need crane.

High Loading capacity

The scientific profile design enhances the good stiffness which provides high strength loading capacity with its allowable concrete pressure up to 60KN/m for one time pouring

Safe & Efficient

Simple and large area design with less accessories makes it easy for installation and dismantling

The maximum size panel is 900x3000mm, it realizes high efficiency of 90-110m/day/worker for installation and dismantling.

The biggest tie rod distance can reach 1.5m, save materials and increase a lot on installation efficiency

Long-term Benefit

Large modular panel design shortens the construction period and reduces material investment and labor cost.

The birch plywood can be reused for 60 times with both sides and replaced with new panel sheet.

The aluminum frame can be reused for 300 times which has 30% return rate.

Smooth concrete surface after dismantling reduces cost for second time plastering

Well-organized Material Management

Modular design panels and standardized components are well displayed and stored in warehouse or job site, to save space and make job site clean and tidy.
