Quickly know the composition of KITSEN Climbing Platform - 2022/05/20 15:36:42

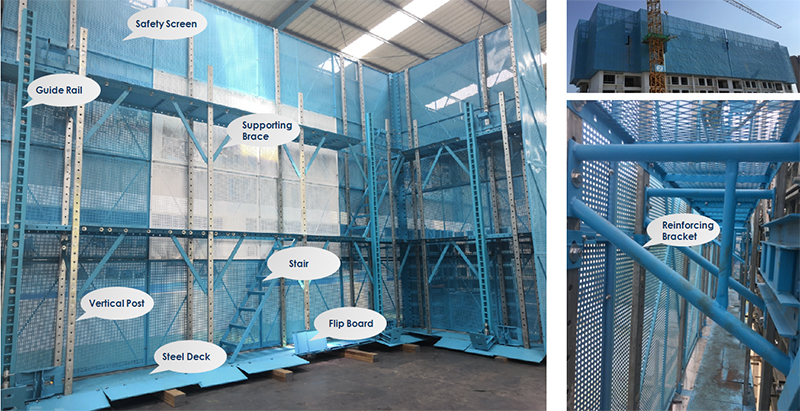

1.Framing Module System

The Framing Module System includes the safety screen, steel deck, guide rail, flip board, supporting brace, vertical post, stair and reinforcing bracket etc. which provides a safety working platform on sites.

Framing Module System

2.Wall Bracket System

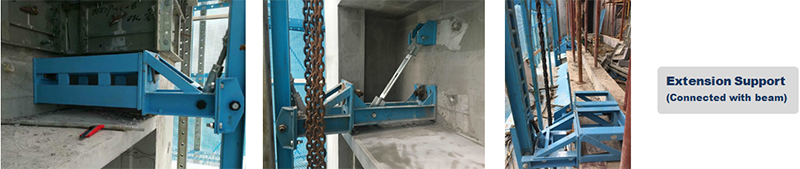

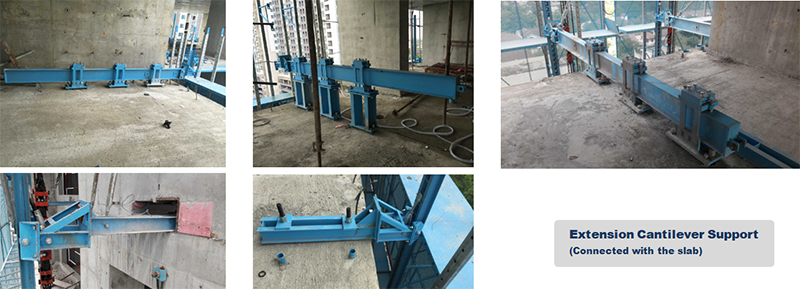

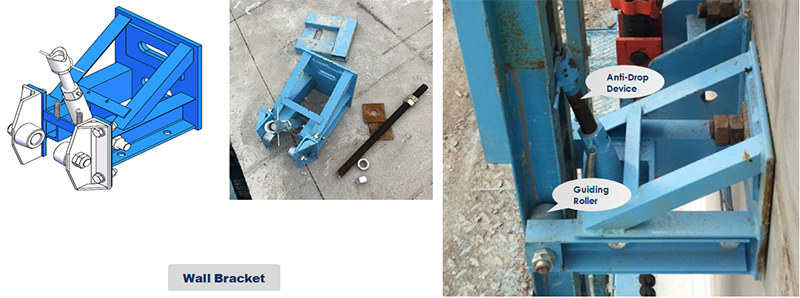

The Wall Bracket System is fixed to the building and connected to the vertical main frame, includes Wall Bracket, Extension Support, Extension Cantilever support and Wire Rope Unit.

It is a holding device for loading-bearing and loading-delivery, with the functions of supporting, anti-drop and anti-overturn.

Wall Bracket System

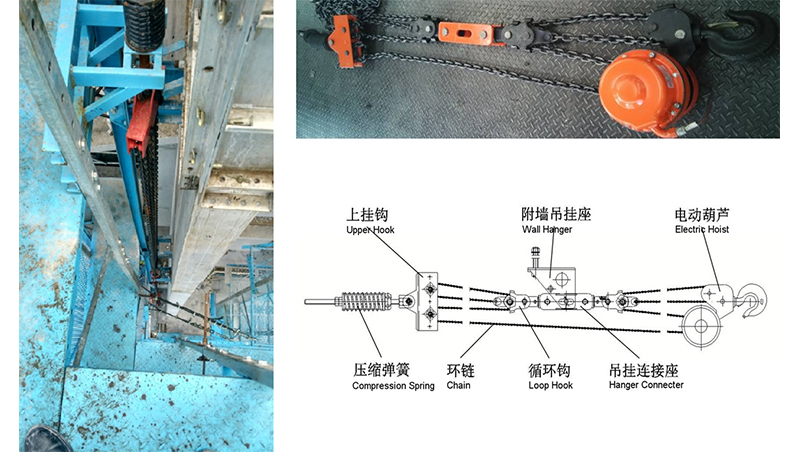

3.Lifting System

The Lifting System includes Wall Hanger, Upper Hanger, Lower Hanger and Electric Hoist.

Lifting System

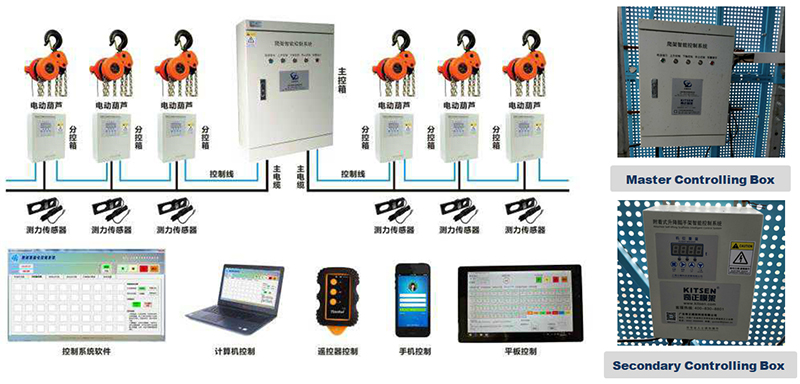

4.Control System

The Control System is for issuing ringing and stopping orders, which includes Mater Controlling Box and Secondary Controlling Box. It can be controlled by computer, remote controller, mobile phone or pad.

Control System
