KITSEN Fastform Slab Formwork Project in Dubai.  - 2025/09/23 11:32:31

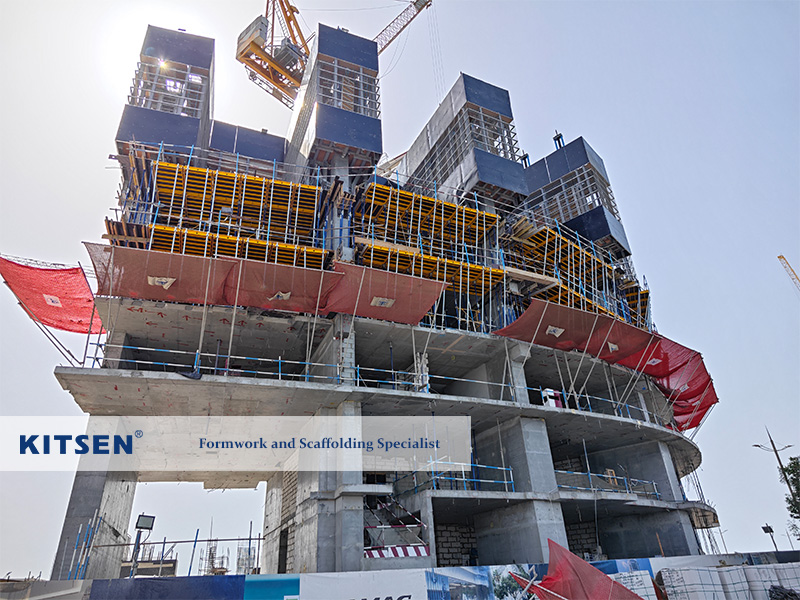

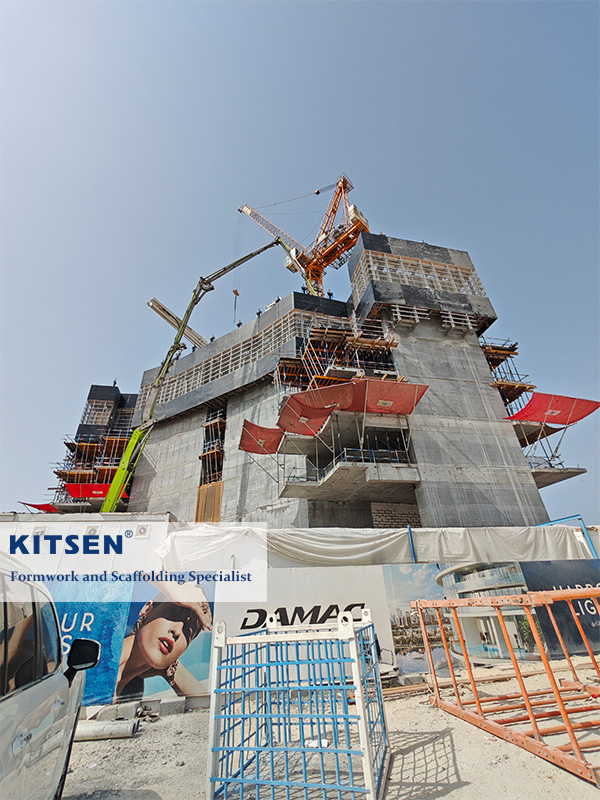

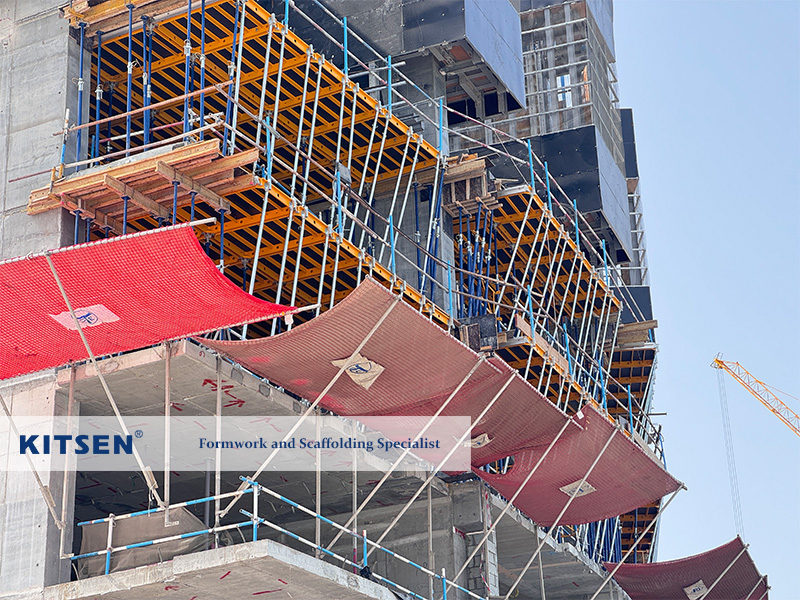

Here are some onging project pictures of KITSEN Fastform Slab Formwork Project in Dubai.

KITSEN Early-stripping Slab Formwork is an advanced aluminum panel-prop-formwork system which allows early stripping operation.

Early-stripping Slab Formwork for concreting of constructions comprising beams, slab and columns comprises several rectangular standard formworks, props with multiple early-stripping support mechanisms , several filler beams and filler panels.

1. Advantages:

1) Fast &Efficient

- Modular components, beam and panel are made of aluminum which is light enough to erect, strip and disassemble.

- One worker can assemble 27m2 per hour, and dismantle 54 m2 per hour.

- Allowable concrete thickness ≤300mm.

- Birch plywood thickness:10mm.

2) Safe&Reliable-Stable system with 6-direction locking restrictions

3) Simple-Only three basic components: panel, crown, prop

2. Product Assembly Description:

1) Check that all components are on site, undamaged and that they are functioning correctly – (refer to Checklist and Quantity Schedules).

2) Damaged or incorrect components shall not be used.

3) Make sure the panel is clean before assembly.

4) Handle panels with care during transit, avoid bumping and collision.

5) Do not hit, pry and drop panels roughly when stripping.

6) Assort and pile up panels properly. Handle panels with care.

7) Keep in mind that the maximum safe working load capacity is 13.75KN/ m2 per square meter.
