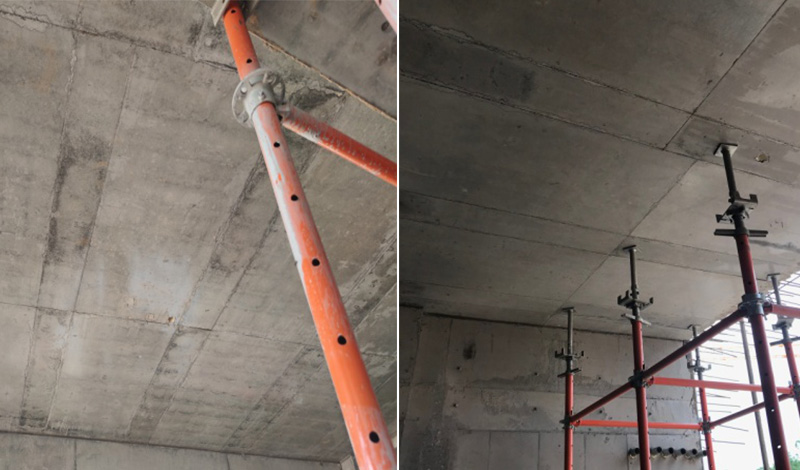

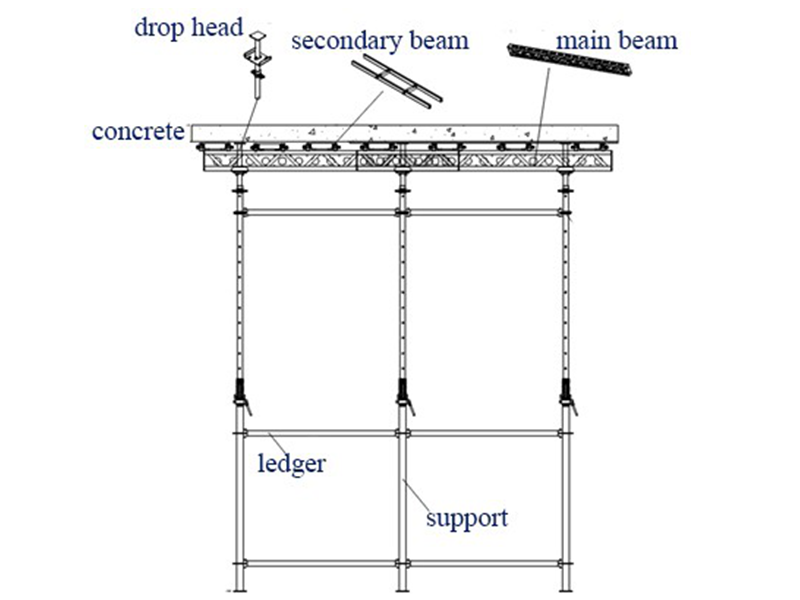

The new 3D formwork system integrates the construction technology for both early stripping and horizontal shoring .It can realize the early stripping and 3 dimensional direction adjustment.

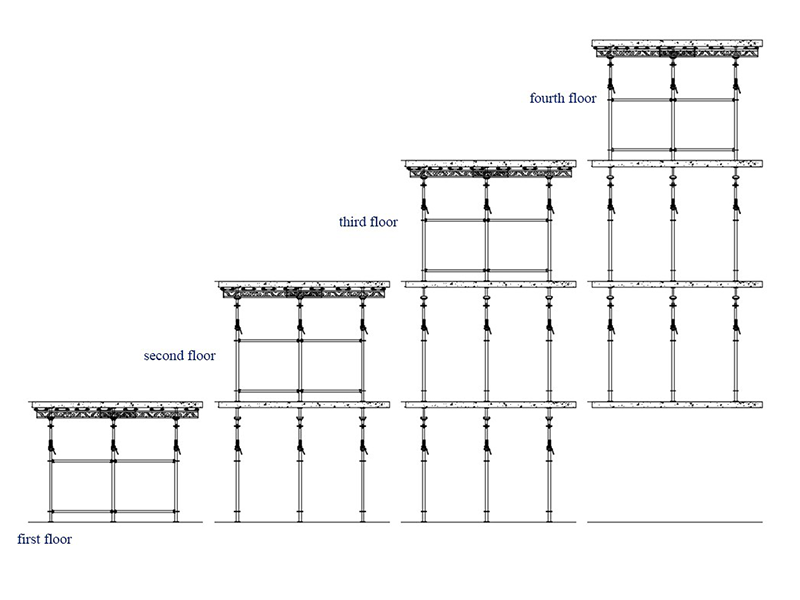

According to construction progress,1 floor formwork with 3 floor or even with 2 floor shoring can ensure both continuous construction and accelerate formwork being reused.
1,Ssfety:
High strength steel beams, strong loading capacity bearing concrete thickness:150mm-600mm.Longer span, good reliability.
2,High Efficiency
Easy erection, lay and set components ,no bolt needed for connection .The construction speed can reach 20-30 square meter/person /day.
Good concrete forming quality , no need plastering.
3,Economy
Constriction timing guarantee, 5 days a floor , save labor cost and management cost.
No plastering cost , including material and labor cost of plastering process.

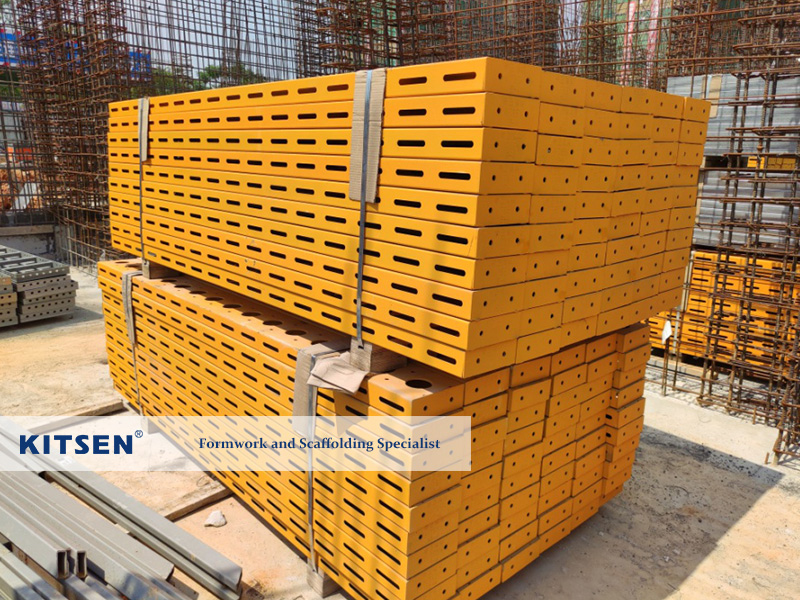

High reuse time steel beams , less new panel cost.
This system can save more cost and bring bigger profit for construction and has been widely used in China and oversea.
